Fire Damper Hardware

Drop Lock Fire Damper Fusible Link

Product Description
Ceiling Radiation/Fire Damper Fusible Link

Product Sizes and Dimensional Data
Temp rated – 68 deg. c (155 deg. F)
UL33 tested
Complies AS1530.4

Product code #5460

Multi Blade Fire Damper Fusible Link

Product Sizes and Dimensional Data
Temp rated – 68 deg. c (155 deg. F)
Complies AS1530.4

Product code #4801

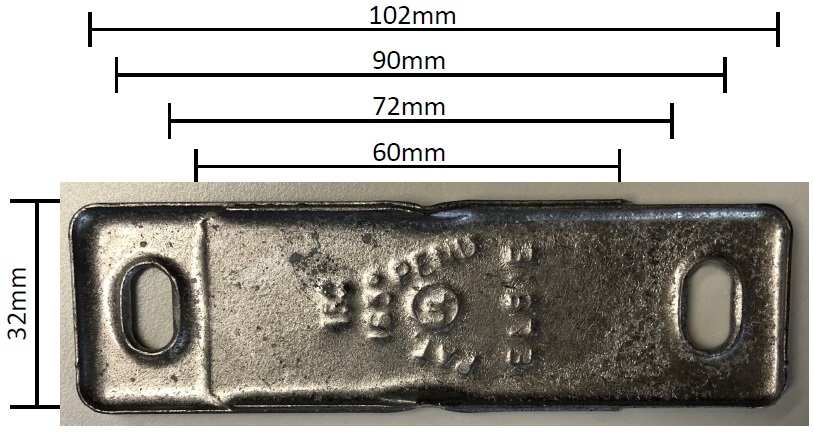

Curtain Type Fire Damper Soldered Fusible Link

Product Sizes and Dimensional Data
Temp rated – 68 deg. c (155 deg. F)
UL33 tested
Complies AS1530.4

Product code #4903

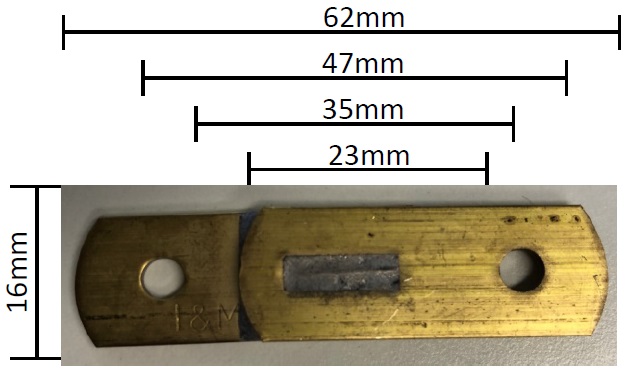

High Temperature Brass Fusible Link

Product Sizes and Dimensional Data
Temp rated – 104deg. c (212 deg. F)

Product code #4802

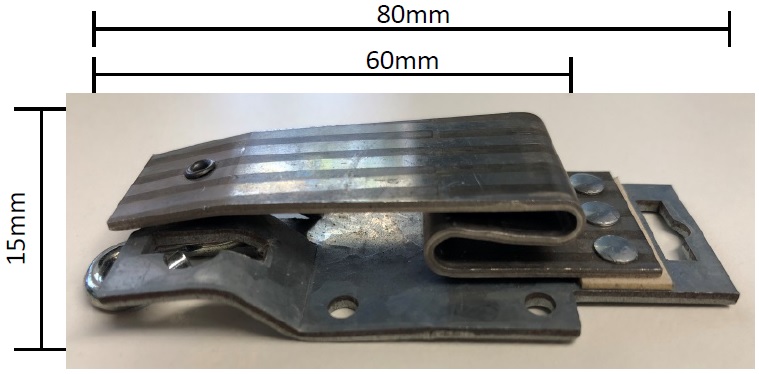

McCabe Reuseable Bi-Metallic Thermal Link

Product Sizes and Dimensional Data
Temp rated – 73deg. c (165deg. F)
UL33 tested
Complies AS1682.1

Right Hand Code #5009
Left Hand Code #5010

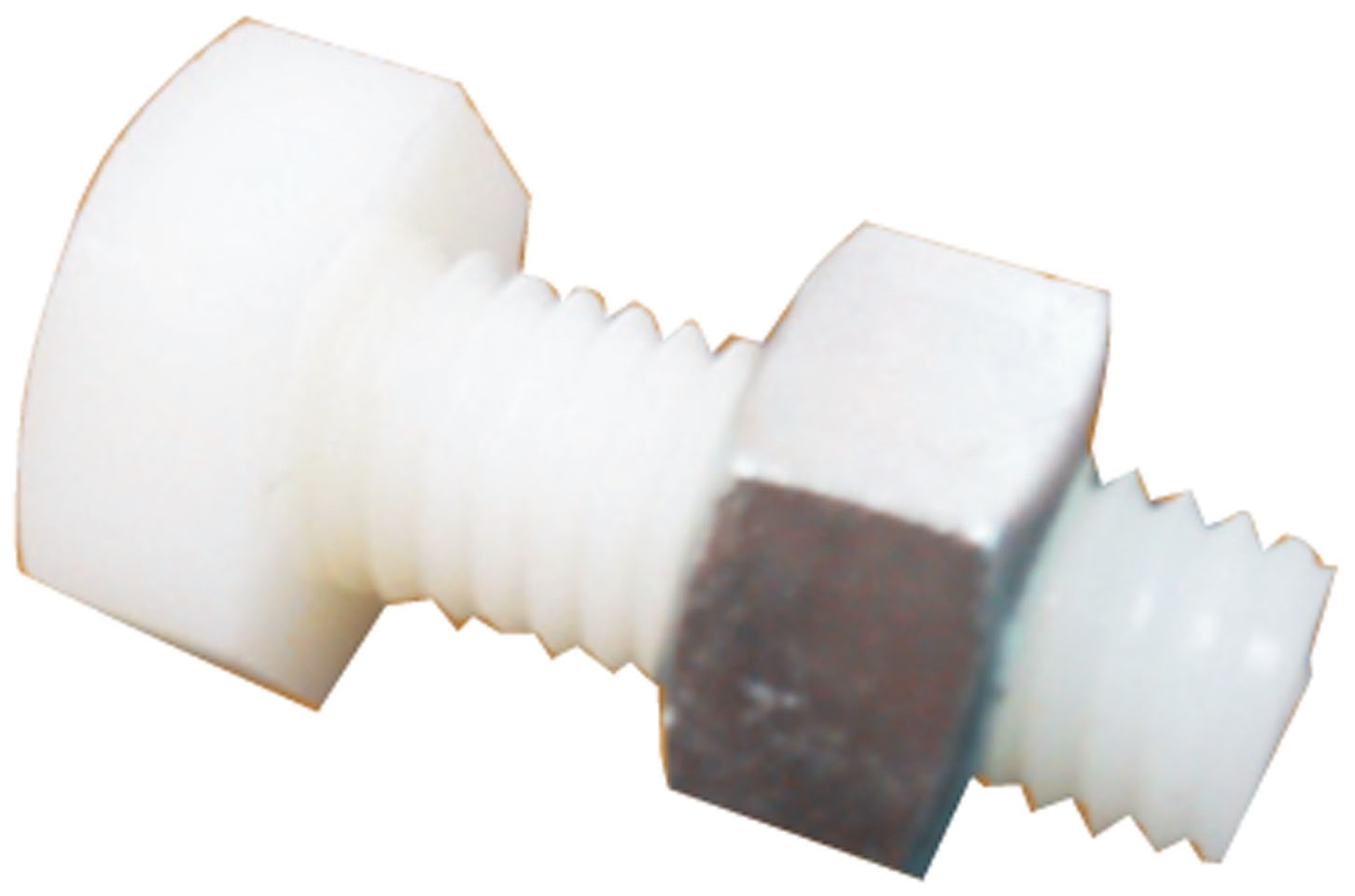

8mm Fire Damper Low Melting Point Nylon Bolt

Product Sizes and Dimensional Data
Melting point temp below 200Deg. C
For use with TDF/TDC flange channel connections

Code #4908/2

Fire Damper Insulation Strips

Product Sizes and Dimensional Data
Temp rated 1160 Deg. C
Strip size 750 x 225 x 13mm
UL33 Tested
Complies with AS1682.2

Code #1257

1/4″ Cup Head Bolt and 1″ Wizz Nut

Product Sizes and Dimensional Data
1/4″ Cup Head Bolt – Code #5630
1/4″ Wizz Nut – Code #5631

Kilargo Intumescent Mastic

Product Sizes and Dimensional Data
Colour – Grey 310g Tube
Carton Quantity 20

Code #1267
